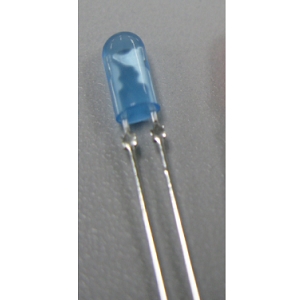

C4SMB-BGY

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The C4SMB-BGY from Cree LED is a LED with Forward Voltage 3.2 to 3.8 V, Forward Current 35 mA, Luminous Intensity cd 934 to 1400 mcd, Luminous Intensity mcd 934 to 1400 mcd, Reverse Current 100 µA. More details for C4SMB-BGY can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C4SMB-BGY
  • Manufacturer
    Cree LED
  • Description
    460 to 475 nm Through Hole LEDs with 934 to 1400 mcd

General Parameters

  • Colors
    Blue
  • Electrostatic Discharge(ESD)
    Class 2
  • pb Free
    Yes
  • Peak Pulse Current
    100 mA
  • Power Dessipation
    140 mW
  • RoHS
    Yes
  • Type
    High Brightness LED
  • Forward Voltage
    3.2 to 3.8 V
  • Forward Current
    35 mA
  • Luminous Intensity cd :
    934 to 1400 mcd
  • Luminous Intensity mcd :
    934 to 1400 mcd
  • Reverse Current
    100 µA
  • Wavelength
    460 to 475 nm
  • Reverse Voltage
    5 V

Physical Properties

  • Package
    Through-Hole
  • Package Type
    Through-Hole
  • Size
    4 mm

Environmental Conditions

  • Soldering Temperature
    260 Degree C
  • Operating Temperature
    -40 to 95 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Electronic Signs & Signals (ESS), Full Color Video Screen, Digital Billboards, Motorway Signs, Variable Message Sign (VMS), Advertising Signs, Petrol Signs

Technical Documents
Click to view more product details on manufacturer's website
