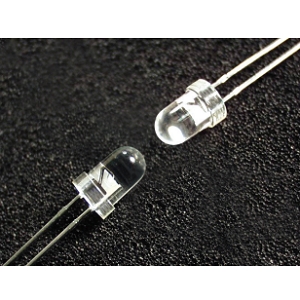

C503B-RCS/RCN-030

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The C503B-RCS/RCN-030 from Cree LED is a LED with Forward Voltage 2.1 to 2.6 V, Forward Current 50 mA, Luminous Intensity cd 4180 to 6600 mcd, Luminous Intensity mcd 4180 to 6600 mcd, Reverse Current 100 µA. More details for C503B-RCS/RCN-030 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    C503B-RCS/RCN-030
  • Manufacturer
    Cree LED
  • Description
    618 to 630 nm Through Hole LEDs with 4180 to 6600 mcd

General Parameters

  • Colors
    Red
  • Electrostatic Discharge(ESD)
    Class 2
  • pb Free
    Yes
  • Peak Pulse Current
    200 mA
  • Power Dessipation
    130 mW
  • RoHS
    Yes
  • Type
    High Brightness LED
  • Viewing Angle
    30 Degrees
  • Forward Voltage
    2.1 to 2.6 V
  • Forward Current
    50 mA
  • Luminous Intensity cd :
    4180 to 6600 mcd
  • Luminous Intensity mcd :
    4180 to 6600 mcd
  • Reverse Current
    100 µA
  • Wavelength
    618 to 630 nm
  • Reverse Voltage
    5 V

Physical Properties

  • Package
    Through-Hole
  • Package Type
    Through-Hole
  • Size
    5 mm

Environmental Conditions

  • Soldering Temperature
    260 Degree C
  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Electronic Signs & Signals (ESS), Motorway Signs, Variable Message Sign (VMS), Advertising Signs, Petrol Signs, Amusement, Roadway Signs
