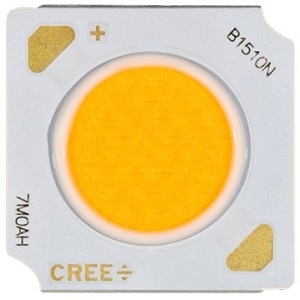

CMB1510

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The CMB1510 from Cree LED is a LED with Forward Voltage 17 to 38 V, Forward Current 900 to 1800 mA, Luminous Flux 1228 to 2108 lm, Reverse Current 0.1 mA, Power 12 to 35 W. More details for CMB1510 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMB1510
  • Manufacturer
    Cree LED
  • Description
    2200K to 6500K COB LEDs with 17 to 38 V Forward Voltage

General Parameters

  • binning
    85 Degree C
  • Colors
    White
  • Configuration
    Chip
  • Correlated color temperature (CCT)
    2200K to 6500K
  • CRI
    70, 80, 90, 95
  • Electrostatic Discharge(ESD)
    Class 3A
  • Light Emitting Surface
    9 mm
  • RoHS
    Yes
  • Viewing Angle
    115 Degrees
  • Forward Voltage
    17 to 38 V
  • Forward Current
    900 to 1800 mA
  • Luminous Flux
    1228 to 2108 lm
  • Reverse Current
    0.1 mA
  • Power
    12 to 35 W
  • Certifications
    Reach

Physical Properties

  • Package
    COB
  • Package Type
    COB

Technical Documents
Click to view more product details on manufacturer's website
