CMU2239

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

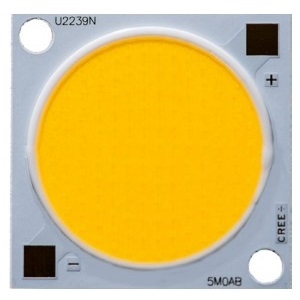

The CMU2239 from Cree LED is a LED with Forward Voltage 33.6 to 38.2 V, Forward Current 2880 mA, Luminous Flux 4116 to 7094 lm, Reverse Current 0.1 mA, Power 36 to 104 W. More details for CMU2239 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    CMU2239
  • Manufacturer
    Cree LED
  • Description
    2200K to 6500K COB LEDs with 33.6 to 38.2 V Forward Voltage

General Parameters

  • binning
    85 Degree C
  • Colors
    White
  • Configuration
    Chip
  • Correlated color temperature (CCT)
    2200K to 6500K
  • CRI
    70, 80, 90, 95
  • Electrostatic Discharge(ESD)
    Class 3A
  • Light Emitting Surface
    22 mm
  • RoHS
    Yes
  • Viewing Angle
    115 Degrees
  • Forward Voltage
    33.6 to 38.2 V
  • Forward Current
    2880 mA
  • Luminous Flux
    4116 to 7094 lm
  • Reverse Current
    0.1 mA
  • Power
    36 to 104 W
  • Certifications
    Reach

Physical Properties

  • Package
    COB
  • Package Type
    COB
