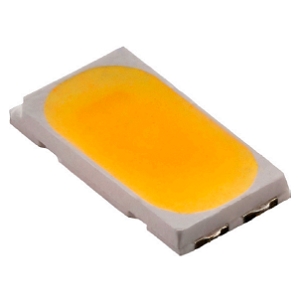

JB5630-C 3-V Standard Q Class

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The JB5630-C 3-V Standard Q Class from Cree LED is a LED with Forward Voltage 2.8 to 3.0 V, Forward Current 240 mA, Luminous Flux 22 to 36.6 lm, Power 0.2 W, Reverse Voltage 5 V. More details for JB5630-C 3-V Standard Q Class can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    JB5630-C 3-V Standard Q Class
  • Manufacturer
    Cree LED
  • Description
    2700K to 6500K Surface Mount LEDs with 22 to 36.6 lm Flux

General Parameters

  • binning
    25 Degree C(Flux), 85 Degree C (chromaticity)
  • Colors
    White
  • Correlated color temperature (CCT)
    2700K to 6500K
  • CRI
    70, 80, 90
  • Electrostatic Discharge(ESD)
    Class 2
  • RoHS
    Yes
  • Series
    J Series 5630
  • Thermal Resistance
    13 Degree C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    2.8 to 3.0 V
  • Forward Current
    240 mA
  • Luminous Flux
    22 to 36.6 lm
  • Power
    0.2 W
  • Reverse Voltage
    5 V
  • Certifications
    Reach
  • Note
    Typical Efficacy: 178 to 201 LPW

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Size
    5.6 x 3.0 x 0.6 mm

Environmental Conditions

  • Junction Temperature
    125 Degree C
  • Operating Temperature
    -40 to 105 Degree C
