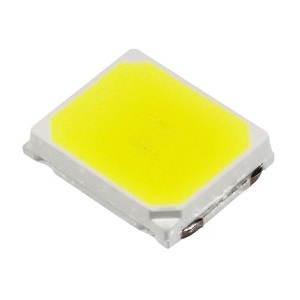

JE2835 PC MINT

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The JE2835 PC MINT from Cree LED is a LED with Forward Voltage 2.96 to 3.1 V, Forward Current 240 mA, Luminous Flux 85 to 100 lm, Power 0.5 mW, Reverse Voltage 5 V. More details for JE2835 PC MINT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    JE2835 PC MINT
  • Manufacturer
    Cree LED
  • Description
    2700K to 6500K Surface Mount LEDs with 2.96 to 3.1 V Forward Voltage

General Parameters

  • Colors
    PC Mint
  • Correlated color temperature (CCT)
    2700K to 6500K
  • Electrostatic Discharge(ESD)
    Class 2
  • RoHS
    Yes
  • Thermal Resistance
    14 Degree C/W
  • Viewing Angle
    117 Degrees
  • Forward Voltage
    2.96 to 3.1 V
  • Forward Current
    240 mA
  • Luminous Flux
    85 to 100 lm
  • Power
    0.5 mW
  • Reverse Voltage
    5 V
  • Certifications
    Reach

Physical Properties

  • Package
    SMD
  • Package Type
    Surface Mount
  • Size
    2.8 x 3.5 x 0.7 mm

Environmental Conditions

  • Junction Temperature
    125 Degree C
  • Operating Temperature
    -40 to 105 Degree C

Technical Documents
Click to view more product details on manufacturer's website
