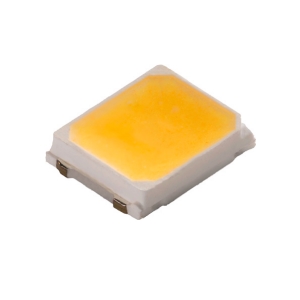

JK2835B 9-V W Class

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The JK2835B 9-V W Class from Cree LED is a LED with Forward Voltage 9.15 to 9.6 V, Forward Current 120 mA, Power 1 mW, Reverse Voltage 5 V, Operating Temperature -40 to 105 Degree C. More details for JK2835B 9-V W Class can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    JK2835B 9-V W Class
  • Manufacturer
    Cree LED
  • Description
    2200K to 6500K Surface Mount LEDs with 9.15 to 9.6 V Forward Voltage

General Parameters

  • binning
    25 Degree C(Flux), 85 Degree C (chromaticity)
  • Colors
    White
  • Correlated color temperature (CCT)
    2200K to 6500K
  • CRI
    70, 80, 90
  • Electrostatic Discharge(ESD)
    Class 2
  • RoHS
    Yes
  • Thermal Resistance
    15.7 Degree C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    9.15 to 9.6 V
  • Forward Current
    120 mA
  • Power
    1 mW
  • Reverse Voltage
    5 V
  • Certifications
    Reach

Physical Properties

  • Package
    SMD
  • Package Type
    Surface Mount
  • Size
    2.8 x 3.5 x 0.7 mm

Environmental Conditions

  • Junction Temperature
    125 Degree C
  • Operating Temperature
    -40 to 105 Degree C
