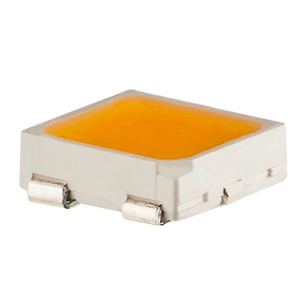

ML-C

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The ML-C from Cree LED is a LED with Forward Voltage 3.2 to 7 V, Forward Current 175 to 350 mA, Luminous Flux 26.8 to 72.6 lm, Reverse Voltage 1 V. More details for ML-C can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    ML-C
  • Manufacturer
    Cree LED
  • Description
    2600K to 8300K Surface Mount LEDs with 26.8 to 72.6 lm Flux

General Parameters

  • Colors
    White
  • Correlated color temperature (CCT)
    2600K to 8300K
  • CRI
    80, 85, 90
  • Electrostatic Discharge(ESD)
    Class 2
  • RoHS
    Yes
  • Series
    XLamp ML
  • Thermal Resistance
    13 Degree C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    3.2 to 7 V
  • Forward Current
    175 to 350 mA
  • Luminous Flux
    26.8 to 72.6 lm
  • Reverse Voltage
    1 V
  • Certifications
    Reach

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount

Environmental Conditions

  • Junction Temperature
    150 Degree C
