XE-G LEDs - RED-ORANGE

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

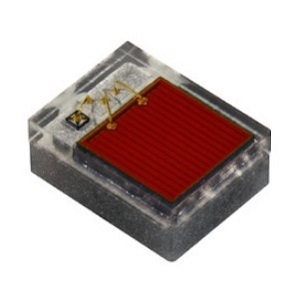

The XE-G LEDs - RED-ORANGE from Cree LED is a LED with Forward Voltage 2.4 to 3.2 V, Forward Current 3000 mA, Luminous Flux 172 to 180 lm, Wavelength 610 to 620 nm, Power 9 W. More details for XE-G LEDs - RED-ORANGE can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XE-G LEDs - RED-ORANGE
  • Manufacturer
    Cree LED
  • Description
    610 to 620 nm LEDs with Ceramic, Surface Mount package

General Parameters

  • binning
    25 Degree C
  • Colors
    Red-Orange
  • Electrostatic Discharge(ESD)
    Class 3B
  • RoHS
    Yes
  • Thermal Resistance
    2.1 Degree C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    2.4 to 3.2 V
  • Forward Current
    3000 mA
  • Luminous Flux
    172 to 180 lm
  • Wavelength
    610 to 620 nm
  • Power
    9 W
  • Reverse Voltage
    1 V
  • Certifications
    Reach

Physical Properties

  • Package
    SMD, Ceramic
  • Package Type
    Ceramic, Surface Mount

Environmental Conditions

  • Junction Temperature
    150 Degree C
