XHP50.2 HD

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

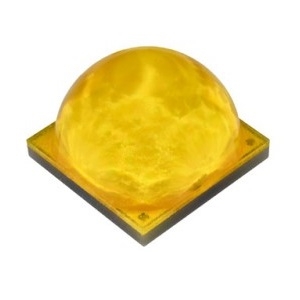

The XHP50.2 HD from Cree LED is a LED with Forward Voltage 2.8 to 12.4 V, Forward Current 1500 to 6000 mA, Luminous Flux 780 to 1328 lm, Power 18 W, Reverse Voltage 1 V. More details for XHP50.2 HD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XHP50.2 HD
  • Manufacturer
    Cree LED
  • Description
    2700K to 7000K Surface Mount, Ceramic LEDs with 2.8 to 12.4 V Forward Voltage

General Parameters

  • binning
    85 Degree C
  • Colors
    White
  • Correlated color temperature (CCT)
    2700K to 7000K
  • CRI
    70, 80, 90
  • Electrostatic Discharge(ESD)
    8000 V
  • RoHS
    Yes
  • Thermal Resistance
    0.6 Degree C/W
  • Viewing Angle
    120 Degrees
  • Forward Voltage
    2.8 to 12.4 V
  • Forward Current
    1500 to 6000 mA
  • Luminous Flux
    780 to 1328 lm
  • Power
    18 W
  • Reverse Voltage
    1 V
  • Certifications
    Reach

Physical Properties

  • Package
    SMD, Ceramic
  • Package Type
    Surface Mount, Ceramic
  • Size
    5 x 5 mm

Environmental Conditions

  • Junction Temperature
    150 Degree C
