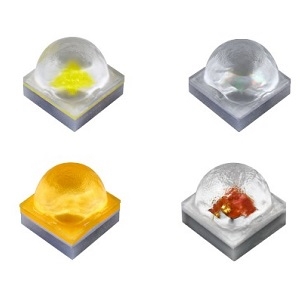

XQ-A

LED by Cree LED
477 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Cree LED.

The XQ-A from Cree LED is a LED with Forward Voltage 2.4 to 3.1 V, Forward Current 300 mA, Luminous Flux 13.9 to 81.6 lm, Power 1 W, Reverse Voltage 1 V. More details for XQ-A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    XQ-A
  • Manufacturer
    Cree LED
  • Description
    2700K to 6500K Surface Mount, Ceramic LEDs with 2.4 to 3.1 V Forward Voltage

General Parameters

  • Colors
    White, Blue, PC Blue, Green, PC, Amber, Red-Orange & Red
  • Correlated color temperature (CCT)
    2700K to 6500K
  • CRI
    70, 80, 90
  • Electrostatic Discharge(ESD)
    Class 3B
  • RoHS
    Yes
  • Thermal Resistance
    9.5 to 17 Degree C/W
  • Viewing Angle
    105 to 115 Degrees
  • Forward Voltage
    2.4 to 3.1 V
  • Forward Current
    300 mA
  • Luminous Flux
    13.9 to 81.6 lm
  • Power
    1 W
  • Reverse Voltage
    1 V
  • Certifications
    Reach

Physical Properties

  • Package
    SMD, Ceramic
  • Package Type
    Surface Mount, Ceramic

Environmental Conditions

  • Junction Temperature
    150 Degree C
