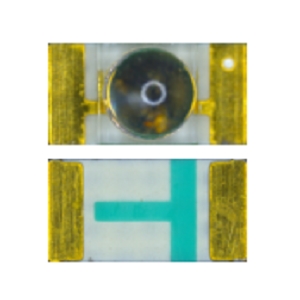

IR3216T14

4 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to DYNA Image Corporation.

The IR3216T14 from DYNA Image Corporation is a LED with Forward Voltage 1.36 to 1.85 V, Reverse Current 10 µA, Wavelength 940 nm, Operating Temperature -40 to 85 Degree C. More details for IR3216T14 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    IR3216T14
  • Manufacturer
    DYNA Image Corporation
  • Description
    940nm, 30 Degree X-direction , 24 Degree Y-direction, 1.85 V Infrared LED

General Parameters

  • Colors
    Infrared
  • Radiant Flux/Power
    25 to 114 mW/sr
  • Viewing Angle
    30 Degree X-direction , 24 Degree Y-direction
  • Forward Voltage
    1.36 to 1.85 V
  • Reverse Current
    10 µA
  • Wavelength
    940 nm

Physical Properties

  • Size
    2.3 x 1.95 x H0.9 mm

Environmental Conditions

  • Operating Temperature
    -40 to 85 Degree C

Applications

  • Application
    Proximity Sensor
