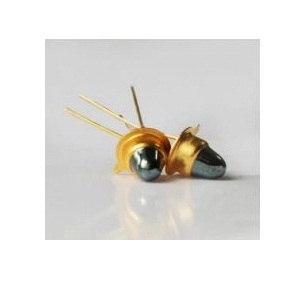

Lms27LED-CG

28 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to LED Microsensor NT.

The Lms27LED-CG from LED Microsensor NT is a LED with Current 200 mA, Forward Voltage 0.2 to 1.0 V, Forward Current 10-200 mA, Wavelength 2700 to 2790 nm, Power 50 to 150 µW. More details for Lms27LED-CG can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    Lms27LED-CG
  • Manufacturer
    LED Microsensor NT
  • Description
    Mid-Infrared (MIR) Light-Emitting Diode

General Parameters

  • Colors
    Mid-Infrared (MIR)
  • Configuration
    Single Emitter
  • Peak Pulse Current
    1000 mA (Pulse)
  • Current
    200 mA
  • Forward Voltage
    0.2 to 1.0 V
  • Forward Current
    10-200 mA
  • Wavelength
    2700 to 2790 nm
  • Power
    50 to 150 µW
  • Note
    Covering Material: chalcogenide glass, pulse duration: qCW: 1 ms, Pulse: 20 us, Duty cycle: qCW: 50%, Pulse: 1%

Physical Properties

  • Package
    TO-18
  • Package Type
    Through-Hole

Environmental Conditions

  • Operating Temperature
    0 to 50 Degree C
  • Storage Temperature
    0 to 50 Degree C
