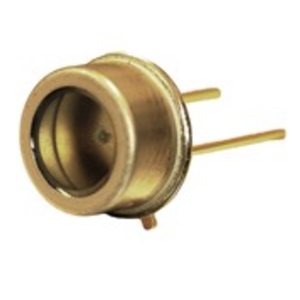

The MTE37000F-IR from Marktech Optoelectronics is a LED with Forward Voltage 0.3 V, Forward Current 300 mA, Reverse Current 100 uA, Wavelength 3700 nm, Power 0.4 mW. More details for MTE37000F-IR can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTE37000F-IR
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Colors
    Infrared
  • Configuration
    Emitter
  • lens type
    Flat Lens
  • pb Free
    Yes
  • RoHS
    Yes
  • Forward Voltage
    0.3 V
  • Forward Current
    300 mA
  • Reverse Current
    100 uA
  • Wavelength
    3700 nm
  • Power
    0.4 mW
  • Reverse Voltage
    5 V

Physical Properties

  • Package
    TO-5
  • Package Type
    TO-Can

Environmental Conditions

  • Soldering Temperature
    260 Degree C
  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Bio Medical Applications, Optical Sensors, Aerospace, Industrial Controls
