MTPS8085MT

490 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Marktech Optoelectronics.

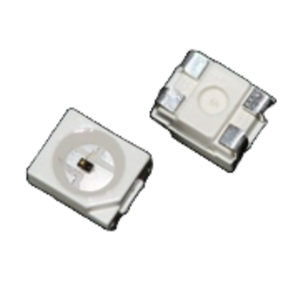

The MTPS8085MT from Marktech Optoelectronics is a LED with Forward Voltage 1.65 to 2 V, Forward Current 20 to 60 mA, Reverse Current 100 uA, Wavelength 855 nm, Power 2 to 3 mW. More details for MTPS8085MT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTPS8085MT
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Colors
    Infrared
  • Configuration
    Emitter
  • lens type
    Flat Lens
  • pb Free
    Yes
  • Peak Pulse Current
    400 mA
  • Power Dessipation
    110 mW
  • RoHS
    Yes
  • Viewing Angle
    150 Degree
  • Forward Voltage
    1.65 to 2 V
  • Forward Current
    20 to 60 mA
  • Reverse Current
    100 uA
  • Wavelength
    855 nm
  • Power
    2 to 3 mW
  • Reverse Voltage
    5 V
  • Note
    Spectral Line Half Width: 25 nm, Half Intensity Beam Angle: ±50 Degree

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount

Environmental Conditions

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Optical Scanning, Linear & Rotary Encoder, Edge Sensing, Optical Sensors
