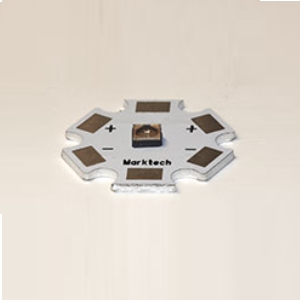

MTSM310UV-F1120S

490 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Marktech Optoelectronics.

The MTSM310UV-F1120S from Marktech Optoelectronics is a LED with Forward Voltage 5.5 V, Forward Current 30 mA, Wavelength 310 nm, Power 1.2 mW, Operating Temperature -30 to 80 Degree C. More details for MTSM310UV-F1120S can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTSM310UV-F1120S
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Colors
    Ultraviolet
  • Configuration
    Emitter
  • lens type
    Flat Lens
  • pb Free
    Yes
  • RoHS
    Yes
  • Viewing Angle
    120 Degree C
  • Forward Voltage
    5.5 V
  • Forward Current
    30 mA
  • Wavelength
    310 nm
  • Power
    1.2 mW
  • Note
    FWHM: 11 nm

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Size
    3.5 x 3.5 mm

Environmental Conditions

  • Operating Temperature
    -30 to 80 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Horticulture, Biochemical sensing, UV curing

Technical Documents
Click to view more product details on manufacturer's website
