MTSM5416SMR2

490 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Marktech Optoelectronics.

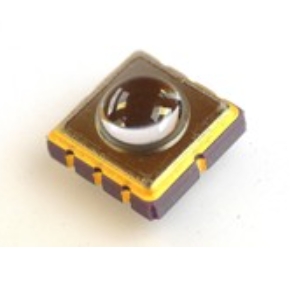

The MTSM5416SMR2 from Marktech Optoelectronics is a LED with Forward Voltage 0.77 V, Forward Current 50 to 100 mA, Reverse Current 10 uA, Wavelength 1650 nm, Power 3.3 mW. More details for MTSM5416SMR2 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTSM5416SMR2
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Colors
    SWIR
  • Configuration
    Emitter
  • lens type
    Dome Lens
  • pb Free
    Yes
  • Peak Pulse Current
    1 A
  • Power Dessipation
    100 mW
  • RoHS
    Yes
  • Viewing Angle
    40 Degree C
  • Forward Voltage
    0.77 V
  • Forward Current
    50 to 100 mA
  • Reverse Current
    10 uA
  • Wavelength
    1650 nm
  • Power
    3.3 mW
  • Reverse Voltage
    5 V
  • Note
    Spectral Line Half Width: 100 nm, Half Intensity Beam Angle: 40 Degree C

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Size
    5 x 5 mm

Environmental Conditions

  • Operating Temperature
    -20 to 85 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Bio Medical Applications, Optical Sensors, Optical Communications
