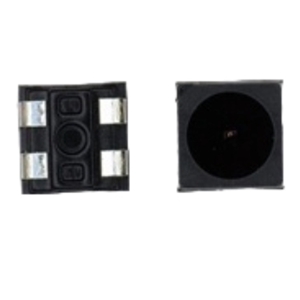

MTSP-1025

490 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Marktech Optoelectronics.

The MTSP-1025 from Marktech Optoelectronics is a LED with Forward Voltage 21 V, Forward Current 5 mA, Luminous Intensity cd 0.75 to 3.6 mcd, Luminous Intensity mcd 0.75 to 3.6 mcd, Wavelength 640 to 660 nm. More details for MTSP-1025 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    MTSP-1025
  • Manufacturer
    Marktech Optoelectronics

General Parameters

  • Colors
    Red
  • Configuration
    Emitter
  • lens type
    Flate Lens
  • pb Free
    Yes
  • RoHS
    Yes
  • Viewing Angle
    110 Degree C
  • Forward Voltage
    21 V
  • Forward Current
    5 mA
  • Luminous Intensity cd :
    0.75 to 3.6 mcd
  • Luminous Intensity mcd :
    0.75 to 3.6 mcd
  • Wavelength
    640 to 660 nm
  • Power
    0.18 mW
  • Reverse Voltage
    5 V
  • Note
    Spectral Line Half Width: 25 nm

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Size
    2.1 x 2.1 mm

Environmental Conditions

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Rangefinder, Red Dot Scopes, Optical Encoder
