OD-110WISOLHT

LED by Opto Diode Corporation

Note: Your Quotation Request will be directed to Opto Diode Corporation.

The OD-110WISOLHT from Opto Diode Corporation is a LED with Forward Voltage 1.7 to 2 V, Forward Current 500 mA, Operating Temperature -65 to 150 Degree C, Storage Temperature -65 to 150 Degree C, Wavelength 880 nm. More details for OD-110WISOLHT can be seen below.

 Product Specifications

    Product Details

    • Part Number :
      OD-110WISOLHT
    • Manufacturer :
      Opto Diode Corporation
    • Description :

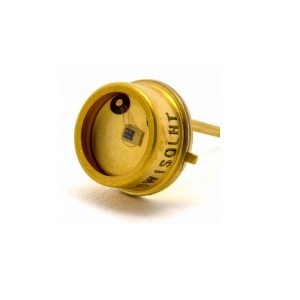

      Wide Angle TO-39 Package 880 nm Emitter

    General Parameters

    • Angle of Half Intensity :
      110 Degree
    • Application :
      Surveillance, Night Vision
    • Colors :
      Infrared
    • Package :
      TO-39
    • Package Type :
      Flange Mount
    • pb Free :
      Yes
    • RoHS :
      Yes
    • Soldering Temperature :
      260 Degree C
    • Forward Voltage :
      1.7 to 2 V
    • Forward Current :
      500 mA
    • Operating Temperature :
      -65 to 150 Degree C
    • Storage Temperature :
      -65 to 150 Degree C
    • Wavelength :
      880 nm
    • Note :
      Rise Time: 20 nsec, Fall Time: 20 nsec, Spectral Bandwidth: 55 nm
