SFH 4235

LED by OSRAM
233 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OSRAM.

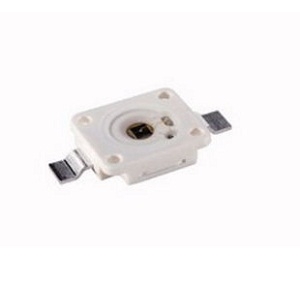

The SFH 4235 from Osram is a half angle ±60° High Power Infrared Emitter that operates at 860 nm. The LED has a radiant flux of up to 950 mW and a high efficiency. It is available in a platinum dragon package and is ideal for surveillance systems, machine vision systems and infrared illumination for cameras. The product is based on the guidelines of AEC-Q101-REV-C, Stress Test Qualification for Automotive Grade Discrete Semiconductors.

Product Specifications

View similar products

Product Details

  • Part Number
    SFH 4235
  • Manufacturer
    OSRAM
  • Description
    High Power Infrared Emitter, 860 nm, Platinum Dragon, Half angle ±60 °

General Parameters

  • Angle of Half Intensity :
    ± 60 Degree
  • Colors
    IR
  • Configuration
    Double Stack emitter
  • Radiant Flux/Power
    950 mW
  • Thermal Resistance
    9 K/W
  • Current
    Surge Current: 3 A
  • Forward Voltage
    3 to 3.5 V
  • Forward Current
    1000 mA
  • Wavelength
    860 nm
  • Reverse Voltage
    1 V
  • Note
    active chip area: 1 x 1 mm, Power consumption: 3400 mW, Spectral Bandwidth: 30 nm, Rise/Fall Time: 7 ns/14 ns, Radiant intensity: 320 mW/sr

Physical Properties

  • Size
    2.75 x 2.0 x 0.6 mm

Environmental Conditions

  • Junction Temperature
    145 Degree C
  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -40 to 125 Degree C

Applications

  • Application
    Infrared Illumination for cameras, Surveillance systems, Machine vision systems
