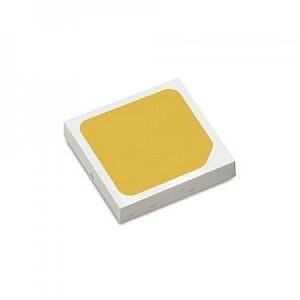

L130-2780003000X21

LED by Lumileds
996 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumileds.

The L130-2780003000X21 from Lumileds is a LED with Forward Voltage 5.8 to 6.6 V, Forward Current 240 mA, Luminous Flux 101 to 112 lm, Wavelength 400 to 800 nm, Reverse Voltage -5 V. More details for L130-2780003000X21 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    L130-2780003000X21
  • Manufacturer
    Lumileds

General Parameters

  • Colors
    Warm White
  • Configuration
    Emitter
  • Correlated color temperature (CCT)
    2700K
  • CRI
    80
  • Peak Pulse Current
    300 mA
  • Viewing Angle
    116 Degree
  • Forward Voltage
    5.8 to 6.6 V
  • Forward Current
    240 mA
  • Luminous Flux
    101 to 112 lm
  • Wavelength
    400 to 800 nm
  • Reverse Voltage
    -5 V
  • Note
    156 to 172 lm/W(Luminous Efficacy)

Physical Properties

  • Package Type
    Surface Mount

Environmental Conditions

  • Junction Temperature
    125 Degree C
  • Operating Temperature
    -40 to 105 Degree C
  • Storage Temperature
    -40 to 105 Degree C
