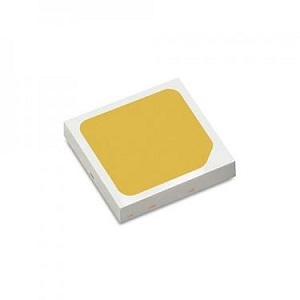

LUXEON 3030 2D

LED by Lumileds

Note: Your Quotation Request will be directed to Lumileds.

The LUXEON 3030 2D from Lumileds is a high flux, hot-color targeted mid power LED. Hot-color targeting ensures that color is within ANSI bin at typical application conditions, 85°C. It comes in all ANSI CCTs and delivers the efficacy and reliability required for both indoor and outdoor illumination markets. This LED is available in a standard packaging of 3.0 x 3.0 mm and is ideal for lamps, outdoor, downlights and high bay & low bay applications.

 Product Specifications

    Product Details

    • Part Number :
      LUXEON 3030 2D
    • Manufacturer :
      Lumileds

    General Parameters

    • Colors :
      Warm White, Cool White
    • Configuration :
      Emitter
    • Correlated color temperature (CCT) :
      2200 to 6500 K
    • Junction Temperature :
      125 Degree C
    • Package Type :
      Surface Mount
    • Peak Pulse Current :
      300 mA
    • Viewing Angle :
      116 Degree
    • Forward Voltage :
      5.8 to 6.6 V
    • Forward Current :
      240 mA
    • Luminous Flux :
      98 to 122 lm
    • Operating Temperature :
      -40 to 105 Degree C
    • Storage Temperature :
      -40 to 105 Degree C
    • Wavelength :
      400 to 800 nm
    • Note :
      125 to 195 lm/W(Luminous Efficacy)
