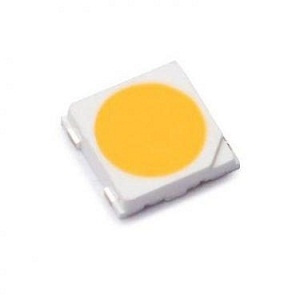

LUXEON 3535L Line

LED by Lumileds
996 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Lumileds.

The LUXEON 3535L Line from Lumileds is a LED with Forward Voltage 2.8 to 3.4 V, Forward Current 65 to 100 mA, Luminous Flux 20 to 49 lm, Reverse Voltage -5 V, Storage Temperature -40 to 105 Degree C. More details for LUXEON 3535L Line can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    LUXEON 3535L Line
  • Manufacturer
    Lumileds
  • Description
    High efficacy, 3535 package, full range of CCTs,CRIs LED's

General Parameters

  • Angle of Half Intensity :
    140 Degree
  • Configuration
    Emitter
  • Correlated color temperature (CCT)
    4000K, 5000K, 5700K, 6500K, 2200K, 2500K, 2700K, 3000K, 3500K
  • CRI
    70, 80, 85, 90
  • Optical Efficiency
    100 to 176 lm/W
  • RoHS
    Yes
  • Viewing Angle
    115 Degree
  • Forward Voltage
    2.8 to 3.4 V
  • Forward Current
    65 to 100 mA
  • Luminous Flux
    20 to 49 lm
  • Reverse Voltage
    -5 V

Physical Properties

  • Package
    3535

Environmental Conditions

  • Junction Temperature
    25 Degree C
  • Storage Temperature
    -40 to 105 Degree C

Applications

  • Application
    Indoor and outdoor, Architectural, Downlights, High Bay & Low Bay, Lamps, Spotlights

Technical Documents
Click to view more product details on manufacturer's website
