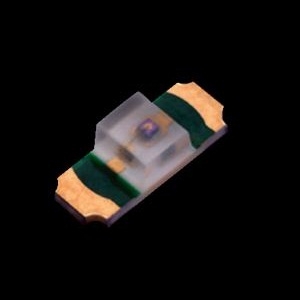

SML-811UT(C)

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to ROHM Semiconductor.

The SML-811UT(C) from ROHM Semiconductor is a LED with Forward Voltage 1.95 V, Forward Current 10 to 25 mA, Luminous Intensity cd 0.0112 to 0.0224 cd, Luminous Intensity mcd 11.2 to 22.4 mcd, Reverse Current 100 µA. More details for SML-811UT(C) can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SML-811UT(C)
  • Manufacturer
    ROHM Semiconductor
  • Description
    Automotive Chip LEDs (Mono-Color Type)

General Parameters

  • Chip Technology
    AlGaInP
  • Colors
    Red
  • Configuration
    Chip
  • Peak Pulse Current
    100 mA
  • Power Dessipation
    62 mW
  • Forward Voltage
    1.95 V
  • Forward Current
    10 to 25 mA
  • Luminous Intensity cd :
    0.0112 to 0.0224 cd
  • Luminous Intensity mcd :
    11.2 to 22.4 mcd
  • Reverse Current
    100 µA
  • Wavelength
    615 to 625 nm
  • Reverse Voltage
    5 V
  • Note
    LED Type: Standard, Duty Cycle: 1/10, Frequancy:1 kHz, Measurement tolerance: ±1 nm

Physical Properties

  • Size
    3.4 x 1.25 mm(t=1.1 mm)

Environmental Conditions

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C
