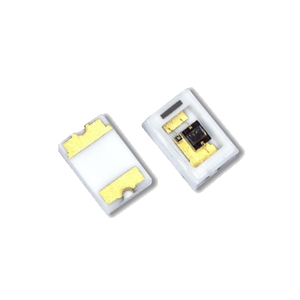

DUV265 -SMD

259 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The DUV265 -SMD from Roithner Lasertechnik is a LED with Current 40 mA, Forward Voltage 10 V, Forward Current 40 mA, Reverse Current 0.05 mA (50 µA), Wavelength 340 nm. More details for DUV265 -SMD can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    DUV265 -SMD
  • Manufacturer
    Roithner Lasertechnik
  • Description
    Single Emitter Deep UV Smd Leds - 340 nm

General Parameters

  • Chip Technology
    AlGaN
  • Colors
    Deep ultraviolet
  • Configuration
    Emitter
  • RoHS
    Yes
  • Viewing Angle
    115 Degree
  • Current
    40 mA
  • Forward Voltage
    10 V
  • Forward Current
    40 mA
  • Reverse Current
    0.05 mA (50 µA)
  • Wavelength
    340 nm
  • Power
    0.0005 W ( 0.5 mW)
  • Reverse Voltage
    4 V

Physical Properties

  • Package
    SMD
  • Package Type
    Surface Mount

Environmental Conditions

  • Soldering Temperature
    190 Degree C
  • Operating Temperature
    -30 to 55 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Blood Gas Measurements, Nitrogen Urea Measurements, UV-curing Applications
