UVLUX285-HL-3

259 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The UVLUX285-HL-3 from Roithner Lasertechnik is a LED with Current 80 mA, Forward Voltage 6.2 to 7.5 V, Forward Current 80 mA, Wavelength 290 nm, Power 0.001 to 0.003 W (1 to 3 mW). More details for UVLUX285-HL-3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UVLUX285-HL-3
  • Manufacturer
    Roithner Lasertechnik
  • Description

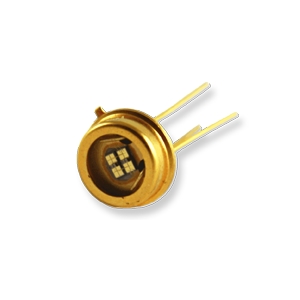

    Multi Chip To39 Deep UV Leds - 290 nm

General Parameters

  • Chip Technology
    AlGaN
  • Colors
    Deep ultraviolet
  • Configuration
    Array
  • Power Dessipation
    600 mW
  • RoHS
    Yes
  • Current
    80 mA
  • Forward Voltage
    6.2 to 7.5 V
  • Forward Current
    80 mA
  • Wavelength
    290 nm
  • Power
    0.001 to 0.003 W (1 to 3 mW)

Physical Properties

  • Package
    TO39
  • Package Type
    Chip

Environmental Conditions

  • Soldering Temperature
    190 Degree C
  • Operating Temperature
    -30 to 55 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Forensic Analysis, Disinfection, Water Sterilization, Protein Analysis, DNA Sequencing
