UVMAX260-HL-15-TEC

259 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Roithner Lasertechnik.

The UVMAX260-HL-15-TEC from Roithner Lasertechnik is a LED with Current 720 mA, Forward Voltage 6.5 to 8 V, Forward Current 720 mA, Wavelength 265 nm, Power 0.01 to 0.015 W (10 to 15 mW). More details for UVMAX260-HL-15-TEC can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    UVMAX260-HL-15-TEC
  • Manufacturer
    Roithner Lasertechnik
  • Description

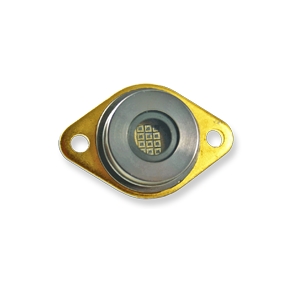

    UVmax Multi Chip To3 Deep UV Leds - 265 nm

General Parameters

  • Chip Technology
    AlGaN
  • Colors
    Deep ultraviolet
  • Configuration
    Array
  • Power Dessipation
    5.8 W
  • RoHS
    Yes
  • Current
    720 mA
  • Forward Voltage
    6.5 to 8 V
  • Forward Current
    720 mA
  • Wavelength
    265 nm
  • Power
    0.01 to 0.015 W (10 to 15 mW)

Physical Properties

  • Package
    TO 3
  • Package Type
    Chip

Environmental Conditions

  • Soldering Temperature
    190 Degree C
  • Operating Temperature
    -30 to 55 Degree C
  • Storage Temperature
    -30 to 100 Degree C

Applications

  • Application
    Forensic Analysis, Disinfection, Optical Sensing, Imaging Applications
