SAW81565A

215 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seoul Semiconductor.

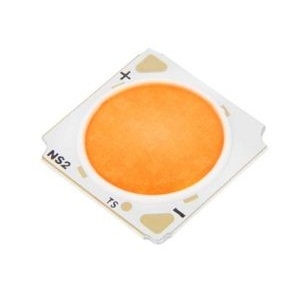

The SAW81565A from Seoul Semiconductor is a LED with Forward Voltage 34.2 V, Forward Current 0.72 to 1.44 A, Luminous Flux 3655 to 3950 Im, Wavelength 375 to 775 nm, Power 24 W. More details for SAW81565A can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SAW81565A
  • Manufacturer
    Seoul Semiconductor

General Parameters

  • Colors
    Warm white, Cool White, Neutral White
  • Configuration
    Chip
  • Correlated color temperature (CCT)
    2700K to 6500K
  • CRI
    80
  • Electrostatic Discharge(ESD)
    Class 3A JESD22-A114-E
  • Power Dessipation
    24.6 to 52.7 W
  • RoHS
    Yes
  • Thermal Resistance
    0.47 K/W
  • Viewing Angle
    118 Degree
  • Forward Voltage
    34.2 V
  • Forward Current
    0.72 to 1.44 A
  • Luminous Flux
    3655 to 3950 Im
  • Wavelength
    375 to 775 nm
  • Power
    24 W

Physical Properties

  • Size
    19 x 19 mm

Environmental Conditions

  • Junction Temperature
    140 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Commercial - Downlight, Replacement lamps - Bulb, PAR, MR16, Industrial, Residential
