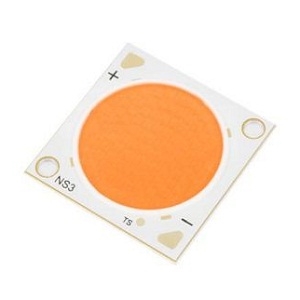

SAW822AAA

215 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Seoul Semiconductor.

The SAW822AAA from Seoul Semiconductor is a LED with Forward Voltage 57.3 V, Forward Current 1.5 to 2.25 A, Luminous Flux 12246 to 13223 Im, Wavelength 375 to 775 nm, Power 80 W. More details for SAW822AAA can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    SAW822AAA
  • Manufacturer
    Seoul Semiconductor

General Parameters

  • Colors
    Warm white, Cool White, Neutral White
  • Configuration
    Chip
  • Correlated color temperature (CCT)
    2700K to 6500K
  • CRI
    80
  • Electrostatic Discharge(ESD)
    Class 3A JESD22-A114-E
  • Power Dessipation
    86 to 134 W
  • RoHS
    Yes
  • Thermal Resistance
    0.16 K/W
  • Viewing Angle
    118 Degree
  • Forward Voltage
    57.3 V
  • Forward Current
    1.5 to 2.25 A
  • Luminous Flux
    12246 to 13223 Im
  • Wavelength
    375 to 775 nm
  • Power
    80 W

Physical Properties

  • Size
    28 x 28 mm

Environmental Conditions

  • Junction Temperature
    140 Degree C
  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 100 Degree C

Applications

  • Application
    Out door area - Bay lighting, Street lighting, Tunnel lighting, Architectural - Spot lighting, Industrial
