M340L4

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M340L4 from Thorlabs Inc is a LED with Current 700 mA, Forward Voltage 4.6 V, Wavelength 340 nm, Power 53 to 60 mW. More details for M340L4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M340L4
  • Manufacturer
    Thorlabs Inc
  • Description

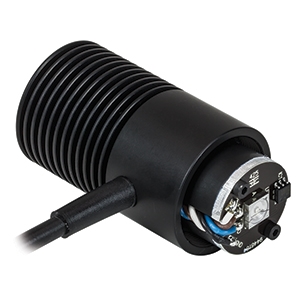

    Deep UV (340 nm) Mounted LED, 700 mA, 53 mW

General Parameters

  • Colors
    Deep UV
  • RoHS
    Yes
  • Radiant Flux/Power
    2.22 µW/mm
  • Viewing Angle
    110 Degree
  • Current
    700 mA
  • Forward Voltage
    4.6 V
  • Wavelength
    340 nm
  • Power
    53 to 60 mW
  • Note
    Bandwidth (FWHM): 11 nm, Electrical Power: 0.322 W, Typical Lifetimed: 3000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
