M395L4

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

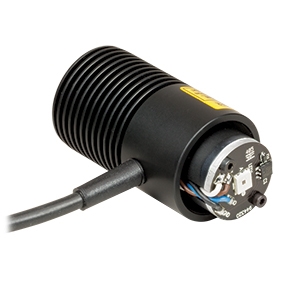

The M395L4 from Thorlabs Inc is a LED with Current 500 mA, Forward Voltage 4.5 V, Wavelength 395 nm, Power 400 to 535 mW. More details for M395L4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M395L4
  • Manufacturer
    Thorlabs Inc
  • Description
    UV (395 nm) Mounted LED, 500 mA, 400 mW

General Parameters

  • Colors
    UV
  • RoHS
    Yes
  • Radiant Flux/Power
    6.7 µW/mm
  • Viewing Angle
    126 Degree
  • Current
    500 mA
  • Forward Voltage
    4.5 V
  • Wavelength
    395 nm
  • Power
    400 to 535 mW
  • Note
    Bandwidth (FWHM): 16 nm, Electrical Power: 2.25 W, Typical Lifetimed: 10000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
