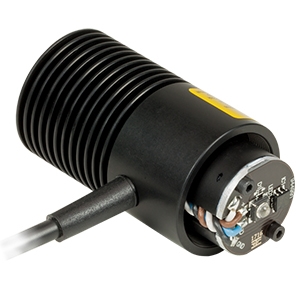

The M405L3 from Thorlabs is a Fiber-Coupled UV LED with a wavelength of 405 nm. It delivers an output power of more than 870 mW and needs to be supplied with a constant current of below 1000 mA. This LED is mounted to the end of a heat sink and the output is compatible with SMA fiber connectors. It has an emitter size of 1 x 1mm and has a lifespan of over 100000 hours.

Product Specifications

View similar products

Product Details

  • Part Number
    M405L3
  • Manufacturer
    Thorlabs Inc
  • Description
    UV (405 nm) Mounted LED, 1000 mA, 870 mW

General Parameters

  • Colors
    UV
  • Configuration
    Chip
  • RoHS
    Yes
  • Radiant Flux/Power
    33.6 µW/mm
  • Viewing Angle
    140 Degree
  • Current
    1000 mA
  • Forward Voltage
    3.7 to 3.9 V
  • Wavelength
    405 nm
  • Power
    3900 mW
  • Note
    Bandwidth: 20 nm, LED Power: 870 to 980 mW, Maximum

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm

Environmental Conditions

  • Operating Temperature
    0 to 40 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Applications

  • Application
    microscope
