M455L3

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M455L3 from Thorlabs Inc is a LED with Current 1000 mA, Forward Voltage 3.2 V, Wavelength 455 nm, Power 900 to 1020 mW. More details for M455L3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M455L3
  • Manufacturer
    Thorlabs Inc
  • Description

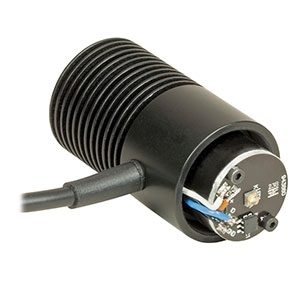

    Royal Blue (455 nm) Mounted LED, 1000 mA, 900 mW

General Parameters

  • Colors
    Royal Blue
  • RoHS
    Yes
  • Radiant Flux/Power
    31.2 µW/mm
  • Viewing Angle
    80 Degree
  • Current
    1000 mA
  • Forward Voltage
    3.2 V
  • Wavelength
    455 nm
  • Power
    900 to 1020 mW
  • Note
    Bandwidth (FWHM): 18 nm, Electrical Power: 3.2 W, Typical Lifetimed: 100000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
