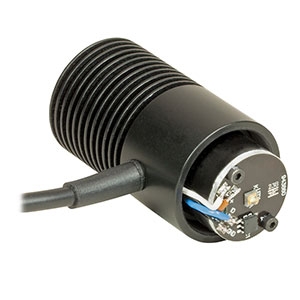

M530L3

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M530L3 from Thorlabs Inc is a LED with Current 1000 mA, Forward Voltage 3.2 V, Wavelength 530 nm, Power 350 to 370 mW. More details for M530L3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M530L3
  • Manufacturer
    Thorlabs Inc
  • Description
    Green (530 nm) Mounted LED, 1000 mA, 350 mW

General Parameters

  • Colors
    Green
  • RoHS
    Yes
  • Radiant Flux/Power
    9.5 µW/mm
  • Viewing Angle
    80 Degree
  • Current
    1000 mA
  • Forward Voltage
    3.2 V
  • Wavelength
    530 nm
  • Power
    350 to 370 mW
  • Note
    Bandwidth (FWHM): 33 nm, Electrical Power: 3.2 W, Typical Lifetimed: 100000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
