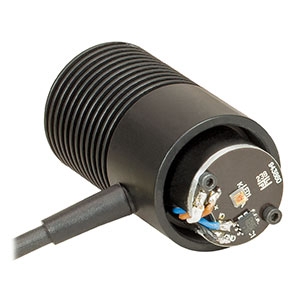

M617L3

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M617L3 from Thorlabs Inc is a LED with Current 1000 mA, Forward Voltage 2.2 V, Wavelength 617 nm, Power 600 to 650 mW. More details for M617L3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M617L3
  • Manufacturer
    Thorlabs Inc
  • Description
    Orange (617 nm) Mounted LED, 1000 mA, 600 mW

General Parameters

  • Colors
    Orange
  • RoHS
    Yes
  • Radiant Flux/Power
    15.7 µW/mm
  • Viewing Angle
    80 Degree
  • Current
    1000 mA
  • Forward Voltage
    2.2 V
  • Wavelength
    617 nm
  • Power
    600 to 650 mW
  • Note
    Bandwidth (FWHM): 18 nm, Electrical Power: 2.2 W, Typical Lifetimed: 100000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
