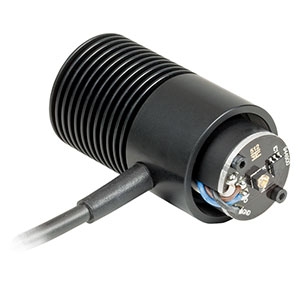

M810L3

LED by Thorlabs Inc
93 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Thorlabs Inc.

The M810L3 from Thorlabs Inc is a LED with Current 500 mA, Forward Voltage 3.6 V, Wavelength 810 nm, Power 325 to 375 mW. More details for M810L3 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    M810L3
  • Manufacturer
    Thorlabs Inc
  • Description
    IR (810 nm) Mounted LED, 500 mA, 325 mW

General Parameters

  • Colors
    IR
  • RoHS
    Yes
  • Radiant Flux/Power
    61.8 µW/mm
  • Viewing Angle
    40 Degree
  • Current
    500 mA
  • Forward Voltage
    3.6 V
  • Wavelength
    810 nm
  • Power
    325 to 375 mW
  • Note
    Bandwidth (FWHM): 25 nm, Electrical Power: 1.8 W, Typical Lifetimed: 10000 h

Physical Properties

  • Package
    Equipped Mounted
  • Size
    1 x 1 mm
