OVS5MRBCR4

87 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to TT Electronics.

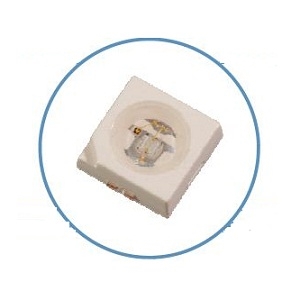

The OVS5MRBCR4 from TT Electronics is a LED with Forward Voltage 2.2 V, Forward Current 140 to 180 mA, Luminous Intensity cd 7.15 to 7.15 cd, Luminous Intensity mcd 7150 mcd, Reverse Current 10 µA. More details for OVS5MRBCR4 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    OVS5MRBCR4
  • Manufacturer
    TT Electronics

General Parameters

  • Chip Technology
    AllnGaP
  • Colors
    Red
  • lens type
    Clear
  • Power Dessipation
    0.33 W
  • RoHS
    Yes
  • Viewing Angle
    120 Degree
  • Forward Voltage
    2.2 V
  • Forward Current
    140 to 180 mA
  • Luminous Intensity cd :
    7.15 to 7.15 cd
  • Luminous Intensity mcd :
    7150 mcd
  • Reverse Current
    10 µA
  • Wavelength
    584 to 599 nm
  • Reverse Voltage
    12 V

Physical Properties

  • Package Type
    Surface Mount

Applications

  • Application
    Automotive exterior and interior lighting, Architectural indoor and outdoor lighting, General lighting, Display Backlighting, Electronic signs and signals
