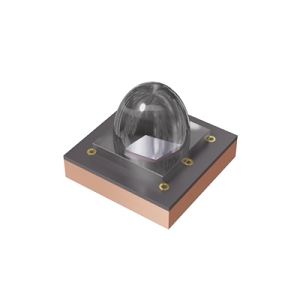

VS5252C45L6-385

LED by Violumas
57 more products from this company
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Violumas.

The VS5252C45L6-385 from Violumas is a LED with Forward Voltage 3.9 V, Forward Current 1000 mA, Wavelength 380 to 390 nm (Peak), Power Up to 1380 mW, Reverse Voltage 5 V. More details for VS5252C45L6-385 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VS5252C45L6-385
  • Manufacturer
    Violumas
  • Description
    380nm-390nm Mid Power UVA LED with Surface Mount package

General Parameters

  • Colors
    Violet
  • Configuration
    Single-Chip
  • Radiant Flux/Power
    1220 to 1380 mW
  • Thermal Resistance
    0.9 Degree C/W
  • Viewing Angle
    60 Degree
  • Forward Voltage
    3.9 V
  • Forward Current
    1000 mA
  • Wavelength
    380 to 390 nm (Peak)
  • Power
    Up to 1380 mW
  • Reverse Voltage
    5 V
  • Note
    Full Width of Half Magnitude: 12 nm

Physical Properties

  • Package
    Surface Mount
  • Package Type
    Surface Mount
  • Size
    5.2 x 5.2 mm

Environmental Conditions

  • Junction Temperature
    115 Degree C
  • Operating Temperature
    -30 to 80 Degree C
  • Storage Temperature
    -40 to 100 Degree C
