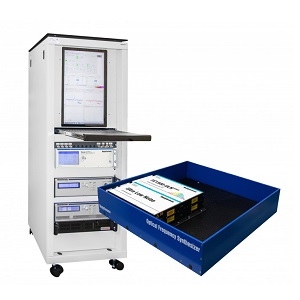

FC1500-ULNnova

Optical Frequency Comb by Menlo Systems

Note: Your Quotation Request will be directed to Menlo Systems.

The FC1500-ULNnova from Menlo Systems is an Optical Frequency Comb that operates at a wavelength of 500 nm - 2 µm. This OFC delivers an average output power above 10 mW (from each laser port) and optional powers of 100 mW (M-VIS) & 200 mW (M-NIR). It has a comb spacing of 250 MHz and tuning range above 4 MHz. This OFC has a Carrier-Envelope Offset frequency tuning range greater than 250 MHz and linewidth of less than 1 Hz. It has an accuracy of 1 x 10-17 (over 100 s) or 1 x 10-14 (over 1000 s).

The FC1500-ULNnova has an integrated phase noise of less than 100 mrad (at 100 Hz - 2 MHz) and bandwidth above 1 MHz. It has a spectral range above 25 nm (500-1050 nm with M-VIS, 1050-2100 nm with M-NIR). This OFC has a fully automated turnkey metrology system that includes data evaluation software and is designed for continuous operation. It has a stability of 1 x 10-16 & less than 5 x 10-13 (in 1 s) and 1 x 10-18 in 1000 s (in 1 s).

The FC1500-ULNnova requires an AC supply voltage of 100/115/230 V and consumes less than 500 W or 3kW of power. It has a closed-cycle chiller and is available in a module that measures 706 x 716 mm. This OFC is ideal for FTIR spectroscopy, calibration of lasers, high-precision CW laser stabilization, transfer of CW laser stability to full comb spectrum, cold atoms & ions, high-resolution spectroscopy, and low-noise microwave generation applications.

Product Specifications

View similar products

Product Details

  • Part Number
    FC1500-ULNnova
  • Manufacturer
    Menlo Systems
  • Description
    500 nm - 2 µm, Optical Frequency Comb for High Resolution Spectroscopy Applications

Environmental Conditions

  • Operating Temperature
    ±5 to 22 Degree C

General Parameters

  • Laser Outputs
    five fiber-coupled, linearly polarized, PM output ports
  • Average Power
    10 mW
  • Comb Spacing
    250 MHz
  • Operation Mode
    CW
  • Power Consumption
    500 W
  • Center Wavelength(CWL)
    1560 nm
  • AC Voltage
    100 to 230 V
  • Tuning Range
    4 MHz
  • Accuracy
    1 x 10-16 & 1 x 10-14
  • Application
    FTIR Spectroscopy, CW Laser Stabilization, Cold Atoms and Ions, Low-noise Microwave Generation
  • Spectral Range
    25 nm
  • Cooling Method
    no water cooling required
  • Stability
    5 x 10-13 & 5 x 10-16 & 5 x 10-17
  • No. of Ports/Output
    7
  • Integrated Phase Noise
    150 mrad
  • Linewidth
    1 Hz
  • Measurement Wavelengths
    500 to 2000 nm
  • Note
    Frequency 50 to 60 Hz

Physical Properties

  • Dimensions
    706 x 716 mm (Optical Unit Dimension)
  • Weight
    80 Kg
