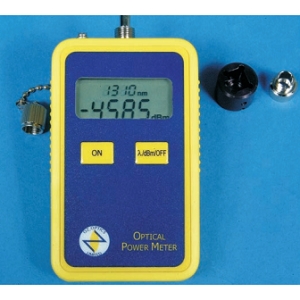

POM-400-IR

Optical Power Meter by OZ Optics Ltd.
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to OZ Optics Ltd..

The POM-400-IR from OZ Optics Ltd. is a Optical Power Meter with Measurement Range(Power) -60 to 3 dBm, Calibrated Wavelength 1310 nm, 1490 nm, 1550 nm, Accuracy ±5%, Resolution 0.01 dB. More details for POM-400-IR can be seen below.

Product Specifications

Product Details

  • Part Number
    POM-400-IR
  • Manufacturer
    OZ Optics Ltd.

Applications

  • Applications
    Fiber optic assembling and testing, Network installation, Component and system troubleshooting, Education, General optical power measuremen

General Parameters

  • Measurement Unit
    W, dBm
  • Measurement Range(Power)
    -60 to 3 dBm
  • Equipment Type
    Handheld
  • Detector Type
    Indium Gallium Arsenide (InGaAs)
  • Battery Type
    3 AAA 1.5 volt batteries
  • Calibrated Wavelength
    1310 nm, 1490 nm, 1550 nm
  • Dynamic Range
    63 dB
  • Power Range
    -60 to 3 dBm
  • Battery Life
    360 hours
  • Accuracy
    ±5%
  • Resolution
    0.01 dB

Connections & Interface

  • Optical Connector
    FC/SC/ST/FC Universal receptacle

Environmental Conditions

  • Operating Temperature
    -10 to 60 Degree C
  • Storage Temperature
    -25 to 70 Degre C

Physical Properties

  • Dimensions
    90 x 55 x 16 mm (L x W x H)
  • Weight
    90 g

Technical Documents
