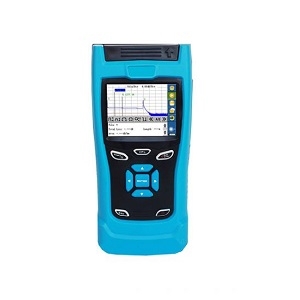

X-30

Optical Time Domain Reflectometer (OTDR) by Shanghai Shinho Fiber Communication
27 more products from this company
Request Quote

Note: Your Quotation Request will be directed to Shanghai Shinho Fiber Communication.

The X-30 from Shanghai Shinho Fiber Communication is a Optical Time Domain Reflectometer (OTDR) with OTDR Measurement Time 15 seconds to 3 minutes, Event Dead Zone 1.8 m, Attenuation Dead Zone 10 m, Optical Wavelength 1310 to 1550 nm, Dynamic Range 28 to 30 dB. More details for X-30 can be seen below.

Product Specifications

Product Details

  • Part Number
    X-30
  • Manufacturer
    Shanghai Shinho Fiber Communication
  • Description
    1310 to 1550 nm Wavelength Range 28 to 30 dB Dyanmic Range FC, SC Connector OTDR

Environmental Conditions

  • Operating Humidity
    0 to 95%
  • Operating Temperature
    -10 to 50 Degree C
  • Storage Temperature
    -40 to 70 Degree C

Connections & Interface

  • Interface
    USB
  • Optical Connector
    FC, SC

General Parameters

  • OTDR Measurement Time
    15 seconds to 3 minutes
  • Event Dead Zone
    1.8 m
  • Attenuation Dead Zone
    10 m
  • Optical Wavelength
    1310 to 1550 nm
  • Display
    3.5 Inch, TFT LCD touch screen
  • Distance Accuracy
    ±(1 m + 5 x 10-5 x distance + sampling interval)
  • Dynamic Range
    28 to 30 dB
  • Memory Capacity
    >60000 traces
  • Pulse Width
    5 to 20480 ns
  • Distance Range
    0.3 to 120 km
  • Output Power
    >-3 dBm

Applications

  • Application
    Measure Optical Fiber Length, Transmission Attenuation, Attenuation of Splice

Physical Properties

  • Dimension
    220 x 106 x 60 mm (H x W x D)
  • Weight
    0.88 kg
