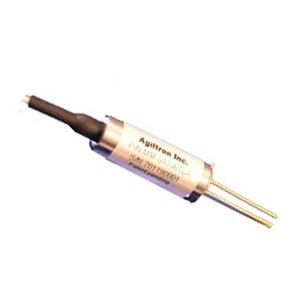

FCHI (900 to 1600 nm)

Photodiode by AGILTRON

Note: Your Quotation Request will be directed to AGILTRON.

The FCHI from Agiltron are InGaAs PIN Photodiodes that operates at a wavelength from 900 nm to 1600 nm. They have a responsivity of 25 mA/W and cut-off frequency of 2 GHz. These photoconductive photodiodes have a polarization-dependent loss of 0.03 dB and polarization extinction ratio of 23 dB. They have a dark current of 0.4 nA and capacitance of 0.2 pF. These single-mode fiber coupled photodiodes have a rise/fall time of 0.3 ns and require an input power of -45 dBm - 27 dBm. They have a reverse voltage of 5 V and support all fiber types. These photodiodes are available in a standard package that measures 6 x 18 mm (Dia. x L) and the size can be varied for other configurations. They are ideal for channel monitoring, power monitoring in optical interface modules, gain monitoring for amplifiers, and instrument applications.

Product Specifications View similar products

Product Details

  • Part Number
    FCHI (900 to 1600 nm)
  • Manufacturer
    AGILTRON
  • Description
    900 nm to 1600 nm, InGaAs PIN Photodiodes for Channel Monitoring & Instrument Applications

Applications

  • Application
    Channel Monitoring, Power Monitoring in Optical Interface Modules, Gain Monitoring for Amplifier, Instruments

Connections & Interface

  • Connector
    FC/APC

General Parameters

  • Cut-Off Frequency
    2 GHz
  • Input Power
    -45 to 27 dBm
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    900 to 1600 nm
  • Photodiode Material
    InGaAs
  • Reverse Voltage
    5 to 20 V
  • Rise/Fall Time
    0.3 ns
  • Spectral Band
    NIR
  • Capacitance
    0.2 to 0.9 pF
  • Dark Current
    0.4 to 1 nA
  • Note
    Photosensitivity: 8 to 45 mA/W

Physical Properties

  • Dimensions
    6 x 18 mm (Dia. x L)

Temperature

  • Operating Temperature display
    -5 to 75 Degree C
  • Storage Temperature
    -40 to 85 Degree C
