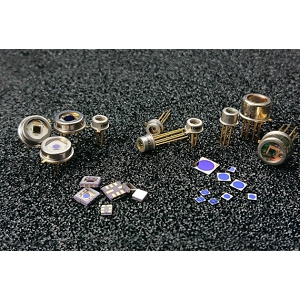

PIN0500-17-D/T0

Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Chunghwa Leading Photonics Tech (CLPT).

The PIN0500-17-D/T0 from Chunghwa Leading Photonics Tech (CLPT) is a Photodiode with Wavelength Range 0.9 to 1.7 µm, Bandwidth 80 to 100 MHz, Capacitance 35 to 50 pF, Dark Current 0.3 to 0.6 nA, Responsivity/Photosensitivity 0.1 to 1 A/W. More details for PIN0500-17-D/T0 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    PIN0500-17-D/T0
  • Manufacturer
    Chunghwa Leading Photonics Tech (CLPT)
  • Description
    InGaAs, PIN Photodiode from 0.9 to 1.7 µm

Applications

  • Application
    Power Monitoring, Spectral Analysis, Light Detection and Ranging (LIDAR), Remote Temperature sensors, Humidity detection, Ice/slush/moisture detection, Gas leak detection, Single-Photodiode SWIR Camera, Convert IR Sensing, Optical Powering

General Parameters

  • Configuration
    Single
  • Forward Current
    10 mA
  • Module
    No
  • Noise equivalent power(NEP) :
    0.5 x 10-14 W/vHz to 1 x 10-14 W/vHz
  • Package
    TO-46/3P
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    0.9 to 1.7 µm
  • Photodiode Material
    InGaAs
  • Reverse Current
    10 mA
  • Reverse Voltage
    20 V
  • Saturation Power
    5 to 7 mW
  • Shunt Resistance
    150 to 500 MOhms
  • Bandwidth
    80 to 100 MHz
  • Capacitance
    35 to 50 pF
  • Dark Current
    0.3 to 0.6 nA
  • Responsivity/Photosensitivity
    0.1 to 1 A/W

Physical Properties

  • Active Area Diameter
    455 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 125 Degree C
