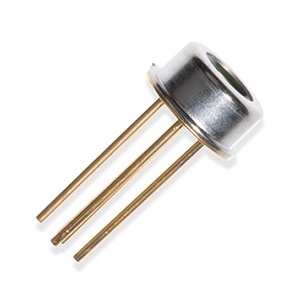

KPDE150-H45

Photodiode by Dexerials Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Dexerials Corporation.

The KPDE150-H45 from Dexerials Corporation is a Photodiode with Wavelength Range 900 to 1700 nm, Capacitance 150 pF, Dark Current 1 nA, Responsivity/Photosensitivity 0.8 to 1 A/W, Active Area Diameter 1500 µm. More details for KPDE150-H45 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    KPDE150-H45
  • Manufacturer
    Dexerials Corporation
  • Description
    900 to 1700 nm InGaAs Photodiodes with TO-Can package

Applications

  • Application
    Laser power monitors, Laser diode and LED aging equipment, Near infrared sensing system, Power meters

General Parameters

  • Forward Current
    50 mA
  • Module
    No
  • Package
    TO-Can
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    900 to 1700 nm
  • Photodiode Material
    Indium Gallium Arsenide (InGaAs)
  • Reverse Current
    50 mA
  • Reverse Voltage
    2 V
  • Spectral Band
    Infrared
  • Capacitance
    150 pF
  • Dark Current
    1 nA
  • Responsivity/Photosensitivity
    0.8 to 1 A/W

Physical Properties

  • Active Area Diameter
    1500 µm

Temperature

  • Operating Temperature
    -20 to 70 Degree C
  • Storage Temperature
    -20 to 80 Degree C
