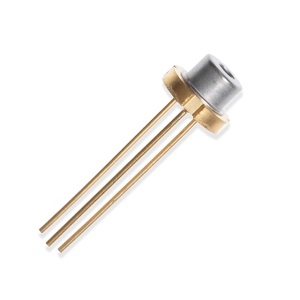

KPDEA007-56F

Photodiode by Dexerials Corporation
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Dexerials Corporation.

The KPDEA007-56F from Dexerials Corporation is a Photodiode with Wavelength Range 1310 to 1550 nm, Bandwidth 2 GHz, Capacitance 0.54 to 1.1 pF, Dark Current 15 to 65 nA, Responsivity/Photosensitivity 0.8 to 1.05 A/W. More details for KPDEA007-56F can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    KPDEA007-56F
  • Manufacturer
    Dexerials Corporation
  • Description
    1310 to 1550 nm KP-A InGaAs Avalanche Photodiodes with TO-Can package

Applications

  • Application
    SONET, GE-PON

General Parameters

  • Breakdown Voltage
    35 to 55 V
  • Forward Current
    10 mA
  • Module
    No
  • Package
    TO-5.6
  • Package Type
    TO-Can
  • Photodetector Type
    Avalanche
  • Operation Mode
    Photoconductive
  • Wavelength Range
    1310 to 1550 nm
  • Photodiode Material
    Indium Gallium Arsenide (InGaAs)
  • Reverse Current
    2 mA
  • Spectral Band
    Infrared
  • Bandwidth
    2 GHz
  • Capacitance
    0.54 to 1.1 pF
  • Dark Current
    15 to 65 nA
  • Responsivity/Photosensitivity
    0.8 to 1.05 A/W

Physical Properties

  • Active Area Diameter
    75 µm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -40 to 85 Degree C
  • Temperature Coefficient
    0.08 to 0.12 V/Degree C
