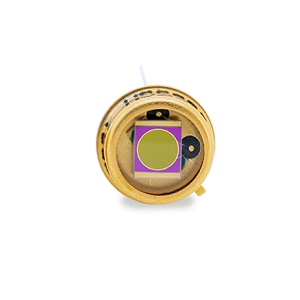

C30665GH-LC

Photodiode by Excelitas Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Excelitas Technologies.

The C30665GH-LC from Excelitas Technologies is an InGaAs PIN Photodiode that has a spectral range of 800 to 1700 nm. It has a peak responsivity of 1.05 A/W at 1550 nm and a rise time of 17 ns with a bandwidth of 20 MHz. This photodiode has a breakdown

Product Specifications

View similar products

Product Details

  • Part Number
    C30665GH-LC
  • Manufacturer
    Excelitas Technologies
  • Description
    InGaAs PIN Photodiode from 800 to 1700 nm

Applications

  • Application
    Optical Power Meter, Fiber Optic Test Communication, Near-IR spectroscopy, Laser profiling stations, Instrumentation, LiDAR

General Parameters

  • Breakdown Voltage
    20 V
  • Configuration
    Single
  • Forward Current
    10 mA
  • Module
    No
  • Package
    TO-5
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    800 to 1700 nm
  • Photodiode Material
    InGaAs
  • Rise/Fall Time
    17 ns
  • RoHs
    Yes
  • Supply Voltage
    5 V
  • Bandwidth
    20 MHz
  • Capacitance
    2 to 15 pF
  • Dark Current
    0.3 to 20 nA
  • Responsivity/Photosensitivity
    0.10 to 1.05 A/W

Physical Properties

  • Active Area
    7 mm
  • Active Area Diameter
    3 mm

Temperature

  • Operating Temperature
    -40 to 85 Degree C
  • Storage Temperature
    -60 to 125 Degree C
