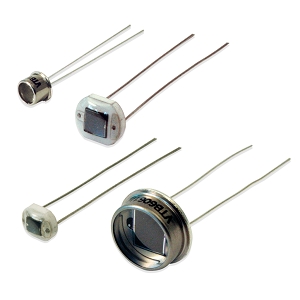

VTB6061CIEH

Photodiode by Excelitas Technologies
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Excelitas Technologies.

The VTB6061CIEH from Excelitas Technologies is a Photodiode with Wavelength Range 460 to 675 nm, Capacitance 8 to 11 nF, Dark Current 2 nA. More details for VTB6061CIEH can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    VTB6061CIEH
  • Manufacturer
    Excelitas Technologies
  • Description
    Silicon photodiode from 460 to 675 nm

Applications

  • Application
    Ambient light sensing, Light meters, Flame monitoring, Photometry

General Parameters

  • Configuration
    Single
  • Module
    No
  • Noise equivalent power(NEP) :
    1.3 x 10-13 W/vHz
  • Package
    TO-8
  • Package Type
    TO-Can
  • Operation Mode
    Photovoltaic
  • Wavelength Range
    460 to 675 nm
  • Photodiode Material
    Silicon
  • RoHs
    Yes
  • Shunt Resistance
    0.10 GOhms
  • Capacitance
    8 to 11 nF
  • Dark Current
    2 nA
  • Note
    RSH Temperature Coefficient: -8%/Degree C, Responsivity: 7 to 11 nA/lux, 75 to 120 nA/fc

Physical Properties

  • Active Area
    37.7 mm

Temperature

  • Operating Temperature
    -55 to 50 Degree C
  • Storage Temperature
    -55 to 50 Degree C
