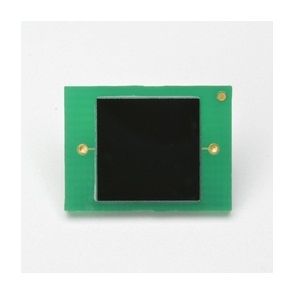

S12497

Photodiode by Hamamatsu Photonics

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S12497 from Hamamatsu Photonics is a Photodiode with Wavelength Range 400 to 1100 nm, Capacitance 750 to 1150 pF, Dark Current 50 to 200 pA, Responsivity/Photosensitivity 0.32 to 0.57 A/W, Rise Time 15 µs. More details for S12497 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S12497
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Chip Silicon photodiode from 400 to 1100 nm

Applications

  • Application
    Non-destructive X-ray inspection, General industrial measurement and the like

General Parameters

  • Configuration
    Single
  • Module
    No
  • Package
    PWB with pins
  • Package Type
    Chip
  • Operation Mode
    Photoconductive
  • Wavelength Range
    400 to 1100 nm
  • Photodiode Material
    Silicon (Si)
  • Reverse Voltage
    10 V
  • Short Circuit Current
    60 to 75 µA
  • Capacitance
    750 to 1150 pF
  • Dark Current
    50 to 200 pA
  • Responsivity/Photosensitivity
    0.32 to 0.57 A/W
  • Rise Time
    15 µs

Physical Properties

  • Active Area
    9.5 x 9.5 mm
  • Window Material
    PWB with pins

Temperature

  • Operating Temperature
    -20 to 60 Degree C
  • Storage Temperature
    -20 to 80 Degree C
