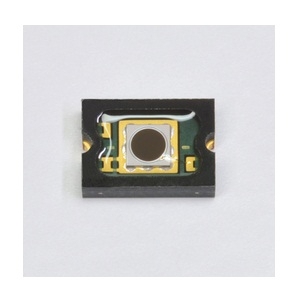

S13954-01CT

Photodiode by Hamamatsu Photonics

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S13954-01CT from Hamamatsu Photonics is a Photodiode with Wavelength Range 320 to 1000 nm, Capacitance 13 to 25 pF, Dark Current 0.01 to 1 nA, Responsivity/Photosensitivity 0.4 to 0.5 A/W, Active Area Diameter 1.5 mm. More details for S13954-01CT can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S13954-01CT
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Silicon PIN photodiode from 320 to 1000 nm

Applications

  • Application
    Laser power monitoring

General Parameters

  • Cut-Off Frequency
    125 to 230 MHz
  • Module
    No
  • Package
    Epoxy/Glass
  • Package Type
    Surface Mount
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    320 to 1000 nm
  • Photodiode Material
    Silicon (Si)
  • Reverse Voltage
    10 V
  • Capacitance
    13 to 25 pF
  • Dark Current
    0.01 to 1 nA
  • Responsivity/Photosensitivity
    0.4 to 0.5 A/W

Physical Properties

  • Window Material
    Silicone resin
  • Active Area Diameter
    1.5 mm

Temperature

  • Operating Temperature
    -40 to 125 Degree C
  • Storage Temperature
    -40 to 125 Degree C
  • Temperature Coefficient
    1.12 times/Degree C
