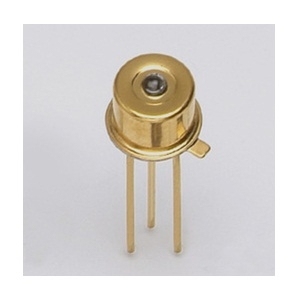

S5973-01

Photodiode by Hamamatsu Photonics
Download Datasheet
Request Quote

Note: Your Quotation Request will be directed to Hamamatsu Photonics.

The S5973-01 from Hamamatsu Photonics is a Photodiode with Wavelength Range 320 to 1000 nm, Capacitance 1.6 pF, Dark Current 0.001 to 0.1 nA, Responsivity/Photosensitivity 0.44 to 0.52 A/W, Active Area Diameter 0.4 mm. More details for S5973-01 can be seen below.

Product Specifications

View similar products

Product Details

  • Part Number
    S5973-01
  • Manufacturer
    Hamamatsu Photonics
  • Description
    Silicon PIN photodiode from 320 to 1000 nm

Applications

  • Application
    Optical fiber communications, High-speed photometry

General Parameters

  • Configuration
    Single
  • Cut-Off Frequency
    1 GHz
  • Module
    No
  • Noise equivalent power(NEP) :
    1.1 x 10-15 W/Hz
  • Package
    TO-18
  • Package Type
    TO-Can
  • Photodetector Type
    PIN
  • Operation Mode
    Photoconductive
  • Wavelength Range
    320 to 1000 nm
  • Photodiode Material
    Silicon (Si)
  • Power Dissipation
    50 mW
  • Reverse Voltage
    20 V
  • Short Circuit Current
    0.42 µA
  • Spectral Band
    VIS-NIR
  • Capacitance
    1.6 pF
  • Dark Current
    0.001 to 0.1 nA
  • Responsivity/Photosensitivity
    0.44 to 0.52 A/W

Physical Properties

  • Active Area
    0.12 mm
  • Window Material
    lens type borosilicate glass
  • Active Area Diameter
    0.4 mm

Temperature

  • Operating Temperature
    -40 to 100 Degree C
  • Storage Temperature
    -55 to 125 Degree C
  • Temperature Coefficient
    1.15 times/Degree C
